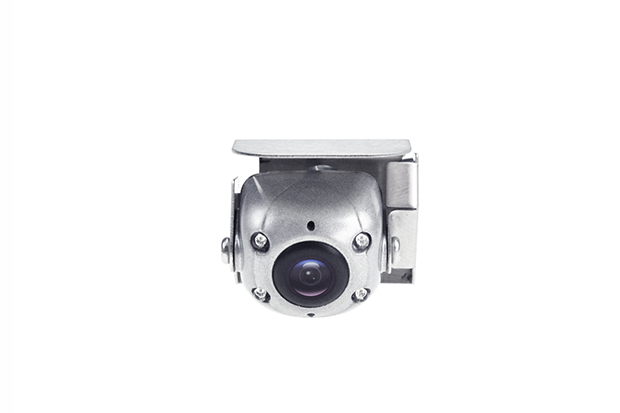

Mini night vision car Compact camera BR-MNC10
BR-MNC10, Mini Size Compact Camera with ir lighting. This 170 degree angle mini camera is the clearest and greatest camera available on the market today. The casing of the camera has a IP69K rating which can withstand all weather conditions. 700 TV Lines for the greatest image from behind your vehicle.
|
Model |
BR-MNC10 |
|
|
Camera |
Sensor |
1/3 CMOS |
|
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
4pcs IR lamp with excellent night vision |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.14mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
138° (D)、117°（H）、75°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD 720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
Interface |
Connect |
4 PinAviation Female Interface |
|
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
None |
|
|
Audio Output |
None |
|
General |
Material |
Metal |
|
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC10-32V±10%(From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
40.6*36*30.9mm(L*W*H) |
|
|
Weight Approx |
|
Benefits of Mini night vision car Compact camera BR-MNC10
720P/1080P HD Camera
Metal housing IP69K
1/2/3/4/8 CH
Available in nine languages
