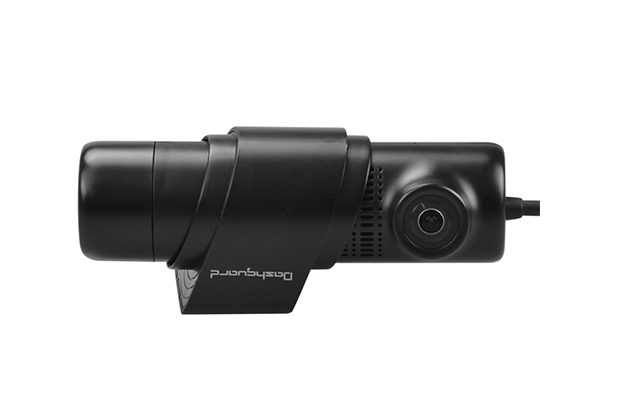

dash camrea video recorder with TF card slot|Brvision-CRD02
dash camrea video recorder with TF card slot|Brvision-CRD02
Dash Cam Video Recorder with TF Card Slot BR-CRD02,1080P Front Rear view Commercial Vehicle Dash Camera with Lock GPS and Wifi Function ,BR-CRD02 compatible with car charger and car power ,5-30V,Sony high -performance CMOS sensor image ,wide angle lens ,270 degree rotated , 2-CH Av output , built in high quality GPS , high sensitive MIC ,wifi wireless connection ,Auto emergency recording, app support ios/android system ,support front and rear 1080 video,support 4-128G TF memory card ,camera with a lock to make it safer.


Applicable vehicle


dash camrea video recorder with TF card slot|Brvision-CRD02

Technical indicators

Parameters

Item No.

BR-CRD02

Size / weight / color

L170mm*ø65mm / 120g / Black

Camera sensor



4M physical pixel CMOS image sensor, Seven groups of all-glass lens



Lens Angle

Diagonal:170°, Horizontal: 130 °, Vertical: 80 °

Rear: Depending on the input camera

Second camera



Support CVBS signal camera input



WIFI


Built-in WIFI module (IEEE 802.11b/g/n, 2.412 GHz-2.4835 GHz)



Mobile terminal app



Dashguard (IOS V8.0 and above, Android V4.0 and above)



Video

Normal recording (card capacity of 79%, this space is automatically deleted after the old file coexistence of new documents)Event recording (20% of card capacity, G-Sensor, SOS button, alarm IN event triggered)

Parking guard recording (parking guard function is turned on, the vehicle vibration after flameout)

Sound recording

Built-in Microphone

Audio and video format

Video: H.264 video encoding / MOV format; audio: AAC

Storage media

TF high-speed memory card (maximum support 128G, make sure to use CLASS10 and above original genuine card)

Speaker



Built-in speaker




Button

Power button/camera button/emergency recording button

Reset button

Upgrade button (press the key to enter the upgrade mode when the power is turned off or the card is released)

LED



2 LED(red、blue)



G-Sensor



Built-in triaxial three-dimensional collision acceleration sensor



GPS



Built-in high-quality GPS, support PC-side player track playback



RTC



Connect the device’s WIFI, open the App or GPS to locate the automatic sync time



Super capacitor

(optional)

Built-in super capacitor

(Only supply power by Cigar-Jack needed)

Parking guard

The recorder uses car power and turns on the parking guard after the flame, if the vibration automatically starts the video

Video output



2-way TVOUT(NTSC/PAL)



language settings



English, Simplified Chinese, Traditional Chinese, etc.



Take pictures



Support JPG format photo capture



Resolution / Bit rate / Frame rate

1920*1080 16M @30fps / 1280*720 12M @30fps

Note: resolution / frame rate / bit rate is currently only two of the default

Loop recording



Time 1, 2, 3 minutes optional



PC player



GVP Player





Upgrade interface

SD card upgrade (upgrade process power failure or return to the card cannot start, you need to press the upgrade button to enter the upgrade mode)

Communication Interface

Reserved UART / IR interface

HDMI interface



Reserved HDMI interface



Alarm I/O



Define input / output alarm line (active low)



Lock



With lock to protect card, tamper resistant



Power



6V-30V car battery or car charger power



Static power consumption

3.6W

Standby current

Less than 1mA

Note: the vehicle is off and after full charge (within 10 min)

Good performance temperature

-25℃to 65℃

Operating temperature

-40℃ to + 75℃

storage temperature



-40℃ to + 90℃
