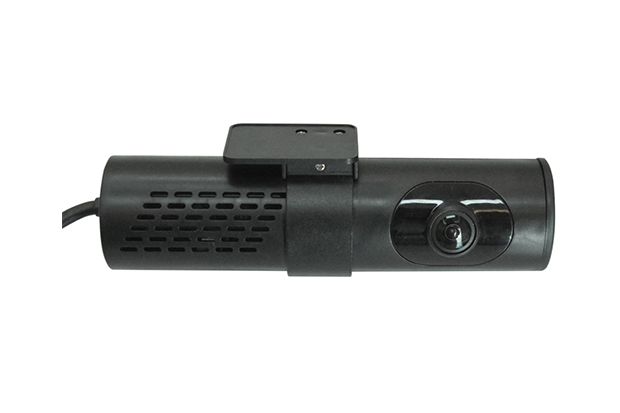

H.265 Dash camera 4G GPS WiFi real time tracking dual 1080P BR-RCD04
BR-CRD04 ,BRVISION best H.265 Dash camera 4G GPS WiFi real time tracking dual 1080P. It compatible with car charger and car power support 9-32V,2 Mega CMOS sensor image ,wide angle lens front and back view H150°.support 256G TF memory card , 2-CH Av in/out, camera with a lock to make it safer.With center software to achieve alarm linkage central monitoring, remote management and playback videos. It is extremely easy to install by 3M tape.
|
Technical indicators |
Parameter Description |
|
Item No. |
BR-CRD04 |
|
Size / weight / color |
L143mm*H46mm*ø38mm / 120g / black |
|
Camera sensor |
2Mega CMOS image |
|
Lens Angle |
6G (H: 175°Hl: 150°, V: 90°) |
|
Two cameras |
Support F/1080P/H150°, C/720P/H150° |
|
WIFI |
Built-in WIFI module(IEEE 802.11b/g/n) |
|
Video |
Normal recording ; Event recording Parking guard recording (parking guard function is on, the vehicle vibration after flameout) |
|
Sound recording |
Built-in Microphone |
|
Audio and video format |
Video: H.264/H.265，MP4 format；Audio: AAC |
|
Storage media |
TF high-speed memory card (maximum support 256G, make sure to use CLASS10 and above original genuine card) |
|
Speaker |
Built-in speaker |
|
Button |
Power button ; Reset button Upgrade button (press the key to enter the upgrade mode) |
|
LED |
2 LED(red、blue) |
|
G-Sensor |
Built-in triaxial three-dimensional collision acceleration sensor |
|
GPS |
Support GPS/GLONASS |
|
RTC |
Time synchronized automatically when connect to the internet or GPS. |
|
Parking guard |
The recorder uses car power and turns on the parking guard after the ignition started, It will start the video automatically when vibration caused |
|
Video output |
HDMI |
|
language settings |
English, Simplified Chinese, Traditional Chinese, etc. |
|
Take pictures |
Support JPG format photo capture |
|
Resolution/Frame rate |
1920*1080@30fps |
|
Loop recording |
Time 1, 2, 3 minutes optional |
|
Upgrade interface |
SD card upgrade(press the upgrade button to enter the upgrade mode) |
|
Communication Interface |
Reserved UART / IR interface |
|
HDMI interface |
Reserved HDMI interface |
|
Alarm I/O |
Define input / output alarm line (active low) |
|
Lock |
With lock to protect card, tamper resistant |
|
Power |
9V-32V car battery |
|
Power consumption |
7W(Max) |
|
Standby current |
Less than 10mA |
|
Operating temperature |
-40 ° C to + 75 ° C |
|
storage temperature |
-40 ° C to + 90 ° |
Benefits of H.265 Dash camera 4G GPS WiFi real time tracking dual 1080P BR-RCD04
720P/1080P HD Camera
Metal housing IP69K
1/2/3/4/8 CH
Available in nine languages
