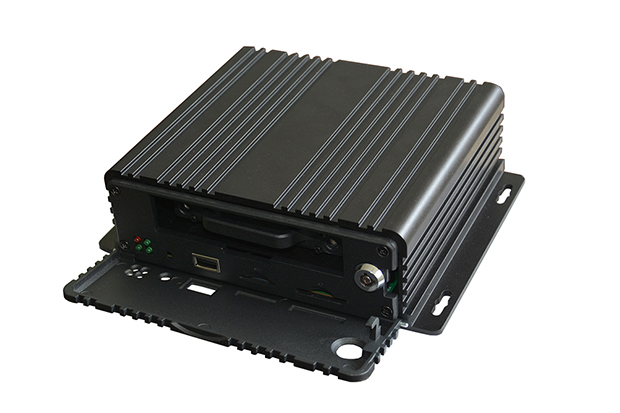

1080P Waterproof 4 Channel Vehicle DVR System |BR-MDVR04
The popular 256G SD card 4channel AHD DVR is avaialble now, it is with Built in Hisilicon high performance image processing chip, H.265 Video Compression code, high compression ratio, clear image,AHD 1080P video input,Built in G-sensor,Real time monitoring behavior of vehicle driving,Support 4 channels real-time preview and storage
|
Item No. |
BRVISION-MDVR04 |
|
Operating system |
Embedded Linux Operating System |
|
Operating language |
Chinese / English |
|
Operation interface |
Graphical menu operation interface, support mouse operation |
|
Password security |
User password, administrator password two-level management |
|
Video TV System |
PAL/NTSC |
|
video compression |
H.265 |
|
Resolution |
1080P/720P /960H/D1 |
|
Playback quality |
1080P/720P /960H/D1 |
| Combination | Various ways |
| Decoding capability |
4-channel 1080P real time |
| Video quality | Levels 1 to 5 are available |
| Screen Display | 1、2、3、4、9 picture view |
| Audio Compression | G.711A |
| Audio recording | Audio & Video synchronized recording |
| Video mode | Manual and alarm |
| Video bit rate | Full frame 3072mbps, 5 classes image quality optional |
| Storage media | Hard disk + SD card |
| Video inquiry | It can be retrieved by time, file, channel, recording type and alarm type |
| Local Playback | 1-4 channels, by time, channel |
| GPS | Support detecting antenna Plug in/Unplug/Short circuit test |
|
2G/3G/4G |
Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE |
| WIFI |
802.11b/g/n，frequency 2.4GHz |
|
Power input |
DC：9V~40V |
| Power output | 12V 2A |
| Operating Temperature | -40 --- 80℃(PCB) |
| External Dimensions | 191mm*149mm*55mm |
Benefits of 1080P Waterproof 4 Channel Vehicle DVR System |BR-MDVR04
720P/1080P HD Camera
Metal housing IP69K
1/2/3/4/8 CH
Available in nine languages
