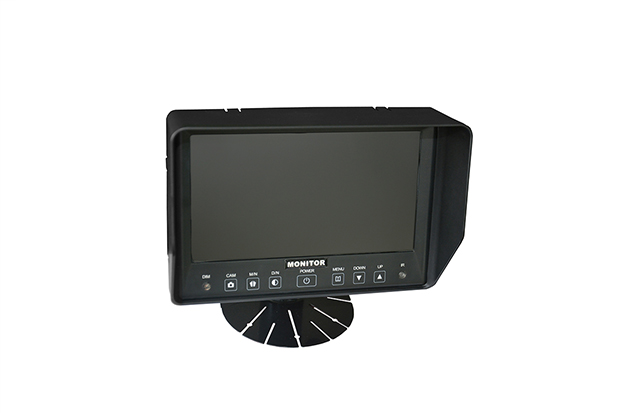

7 inch TFT Quad Split Waterproof Monitor BR-704WP
7’’ waterproof monitor with IP67, support 4 cameras input. It is able to connect reverse camera, side view camera and facing cameras at the same time. Super waterproof and perfect appearance design. This monitor can be used in any application where it would be exposed to water
|
MODEL |
BR-TM704WP |
|
Screen size |
7“ IPSSuper TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
4 channels（CVBS/AH720P/AHD1080P） |
|
Audio Input |
4 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
4 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
700:1 |
|
Viewing Angle |
H:85 V:85 |
|
External Dimensions |
188.3*132*68.5mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
N/A(No cameras) |
|
Operation Temperature: |
-30℃~+85℃.RH95% Max |
|
Storage Temperature: |
-40℃~+90℃.RH95% Max |
|
Waterproof |
IP68K |
|
Options |
Speaker，remote control |
Benefits of 7 inch TFT Quad Split Waterproof Monitor BR-704WP
720P/1080P HD Camera
Metal housing IP69K
1/2/3/4/8 CH
Available in nine languages
