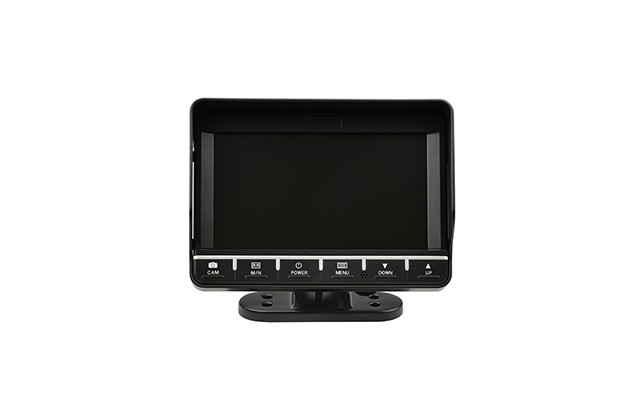

7 inch 1080P Recording Quad Monitor BR-TMQ7002-DVR
The size of commercial vehicles and machines means that vehicle blind spots are a major factor in collisions in all industries. The position of the operator, the body, the lack of rear windows and partitions will cause further restrictions and may greatly limit the driver’s field of view, making collisions more likely. The significant financial costs of vehicle and property losses are magnified by related costs such as downtime, but in the event of personal injury, the corporate and emotional costs will be higher.
Our camera monitoring system enables drivers and operators to maneuver and drive safely. The xx camera system can help the driver see blind spots and provide reversing assistance by providing real-time information on all things (including people or obstacles) in the camera view on the monitor.
Our camera monitoring system enables drivers and operators to maneuver and drive safely. The xx camera system can help the driver see blind spots and provide reversing assistance by providing real-time information on all things (including people or obstacles) in the camera view on the monitor.
|
MODEL |
BR-TMQ7002-DVR |
|
Screen size |
7’ TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
4 channels Splid（CVBS/AHD720P/1080P） |
|
Audio Input |
4 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
4 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
700:1 |
|
Viewing Angle |
H:85 V:85 |
|
Storage |
128G TF Card |
|
External Dimensions |
189*133*57.5mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
2.6W(No cameras) |
|
Operation Temperature: |
-30℃~+85℃.RH95% Max |
|
Storage Temperature: |
-40℃~+90℃.RH95% Max |
|
Waterproof |
IP65 |
|
Options |
Speaker,remote control |
Benefits of 7 inch 1080P Recording Quad Monitor BR-TMQ7002-DVR
720P/1080P HD Camera
Metal housing IP69K
1/2/3/4/8 CH
Available in nine languages
