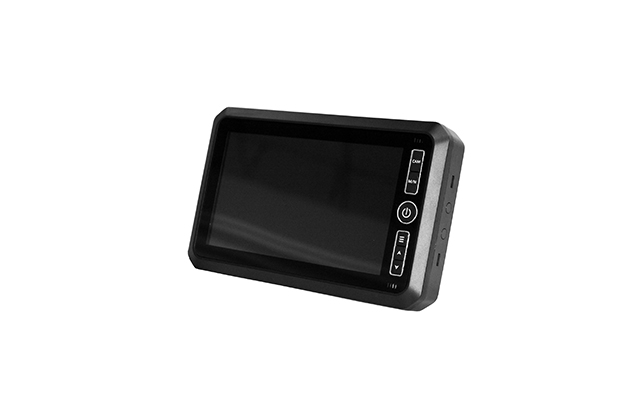

7inch 720P 1080P HD Image Reversing Truck Monitor BR-TM7004-AHD

BRVISION unique design, 7inch TFT Digital AHD monitor, with high resolution image, which is able to supoort 720P/1080P rear view cameras. Touch button with 2CH input. Have some spcial function: time delay, guildline ,mirror or normal image. 9 languages selectable for user operation. With multiple viewing options, you can choose how many cameras you would like to view and in which format. Comes with a one year warranty

All Monitor Contact us

Applicable vehicle

MODEL	BR-TMQ7004-AHD
Screen size	7’ TFT panel
Aspect Ratio	16:9 image
Video Input	2 channels（CVBS/AHD720P/1080P）
Audio Input	2 Channels
Speaker	1 Channel(Options)
Trigger	2 channels
Resolution	1024 x 3(RGB) x 600
Brightness	520cd/m2
Contrast radio	700:1
Viewing Angle	H:85 V:85
External Dimensions	218.4159.785.3mm (W)(H) (T)
Operating Voltage	12-36V DC
Power	N/A
Operation Temperature:	-30℃~+85℃.RH95% Max
Storage Temperature:	-40℃~+90℃.RH95% Max
Waterproof	IP65
Options	Speaker，remotecontrol，headrest

All Monitor

Passenger car

Heavy truck

+More cases

Benefits of 7inch 720P 1080P HD Image Reversing Truck Monitor BR-TM7004-AHD

720P/1080P HD Camera
Metal housing IP69K
1/2/3/4/8 CH
Available in nine languages
