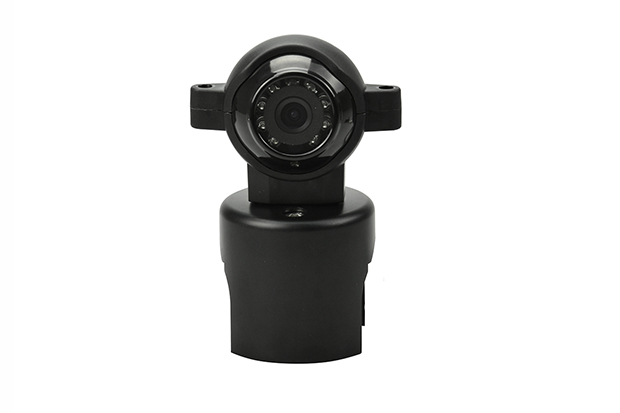

Wing Mirror Arm Camera for Side View BR-RVC07-AC
BR-RVC07-AC, Brvision unique design, arm rear view camera for heavy duty. Front view and side view by choice. It’s viewing angle can be easily adjusted allowing this camera to mount in a variety of different ways. Normal and mirror image is switching. Camera comes included with 4P connector.The backup camera is completely weatherproof with an IP69K rating, comes with a full year warranty.
|
Model |
BR-RVC07-AC |
|
|
Camera |
Sensor |
1/3 CMOS |
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
9pcs IR lamp with excellent night vision |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.4 mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
133° (D)、106°（H）、76°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
|
Interface |
Connect |
4 PinAviation Female Interface |
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
NONE |
|
|
Audio Output |
NONE |
|
|
General |
Material |
Metal&Plastic |
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC 9-36V±10%(or From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
57.1*79*140.9mm（L*W*H) |
|
|
Weight Approx |
|
|
Benefits of Wing Mirror Arm Camera for Side View BR-RVC07-AC
720P/1080P HD Camera
Metal housing IP69K
1/2/3/4/8 CH
Available in nine languages
